Atom Carbon + R3

Atom Carbon + R3

ESP32 Version
STM32 Version
ОписПодробиці та характеристикиПрикріплені файли
The best solution for controlling heavy loads. Best for automation of electric heating devices (floor heating, space heaters, boilers) and other devices with high inrush current.

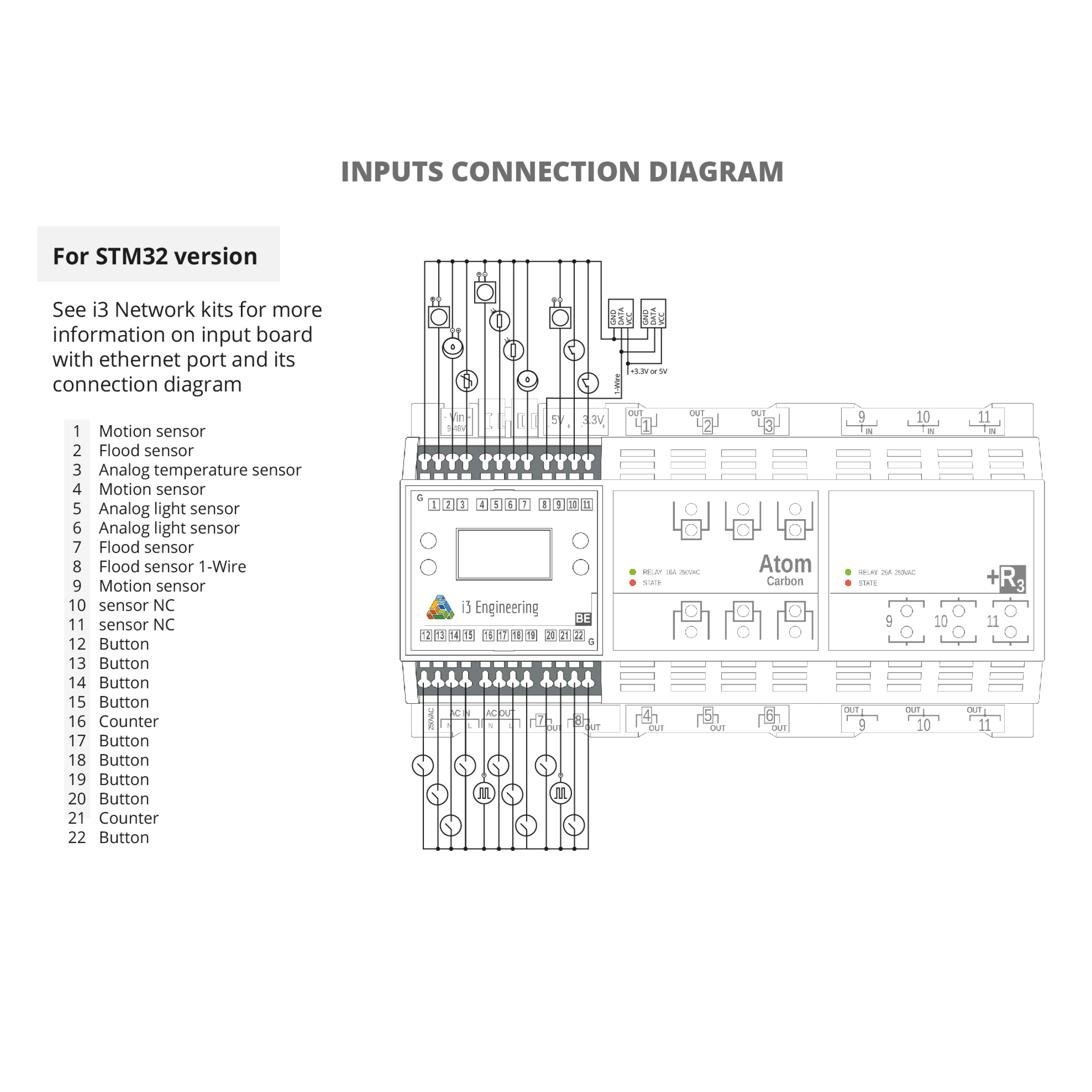

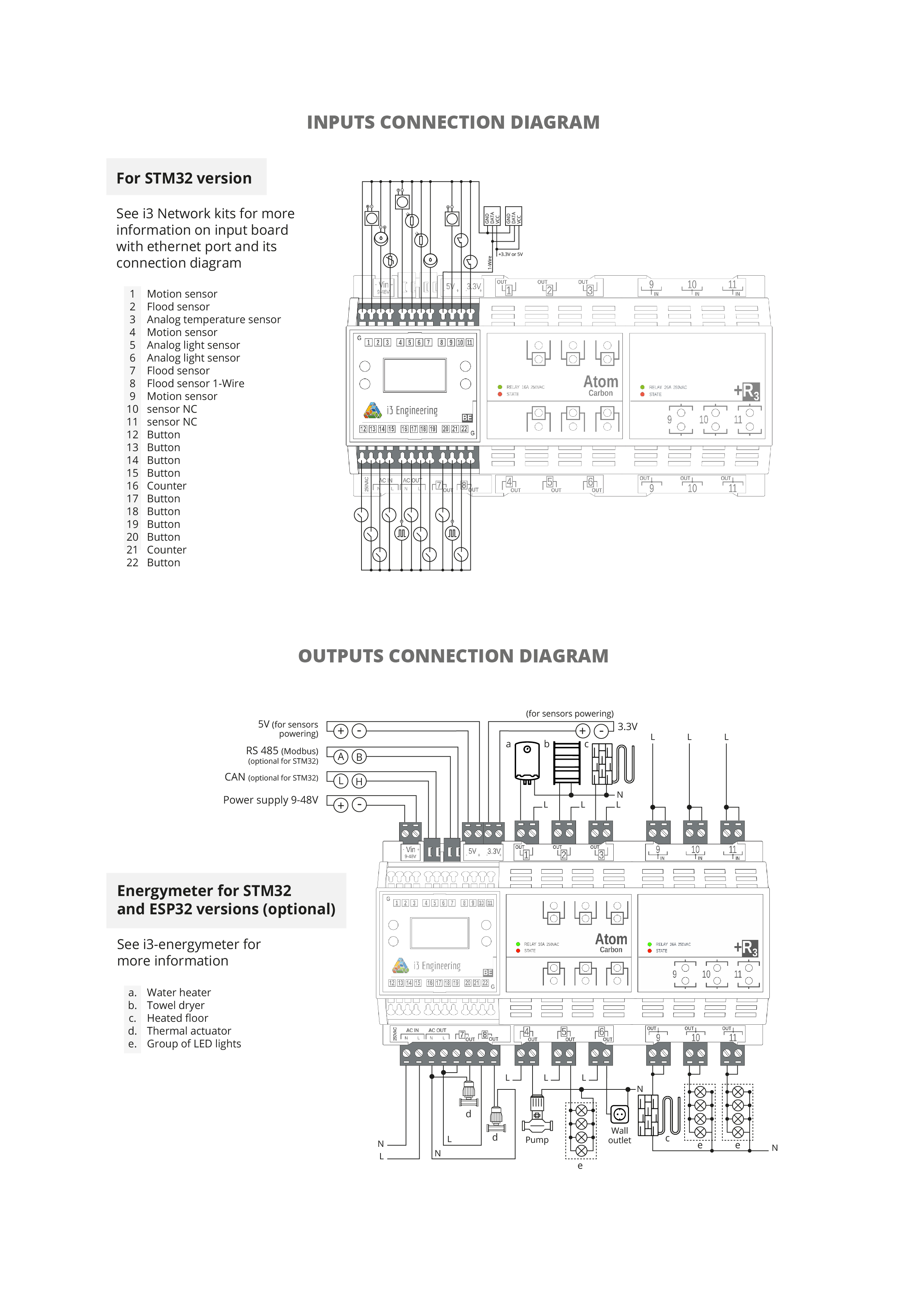

Multifunctional ports (MFP):
- MFP with digital input
22: IN1-IN22
- MFP with ADC
6: IN1-IN6 for ESP32; 10: IN3-IN12 for STM32
- MFP with digital interfaces
4: IN1-IN2, IN7-IN8 for ESP32; 12: IN1-IN12 for STM32
- MFP with digital outputs
16: IN1-IN2, IN7-IN22 for ESP32; 22: IN1-IN22 for STM32
- Voltage range for MFP IN1-IN11
0 - 3,3 V
- Voltage range for MFP IN12-IN22
0 - 5 V
- ADC bit for MFP in analog mode
12 bit

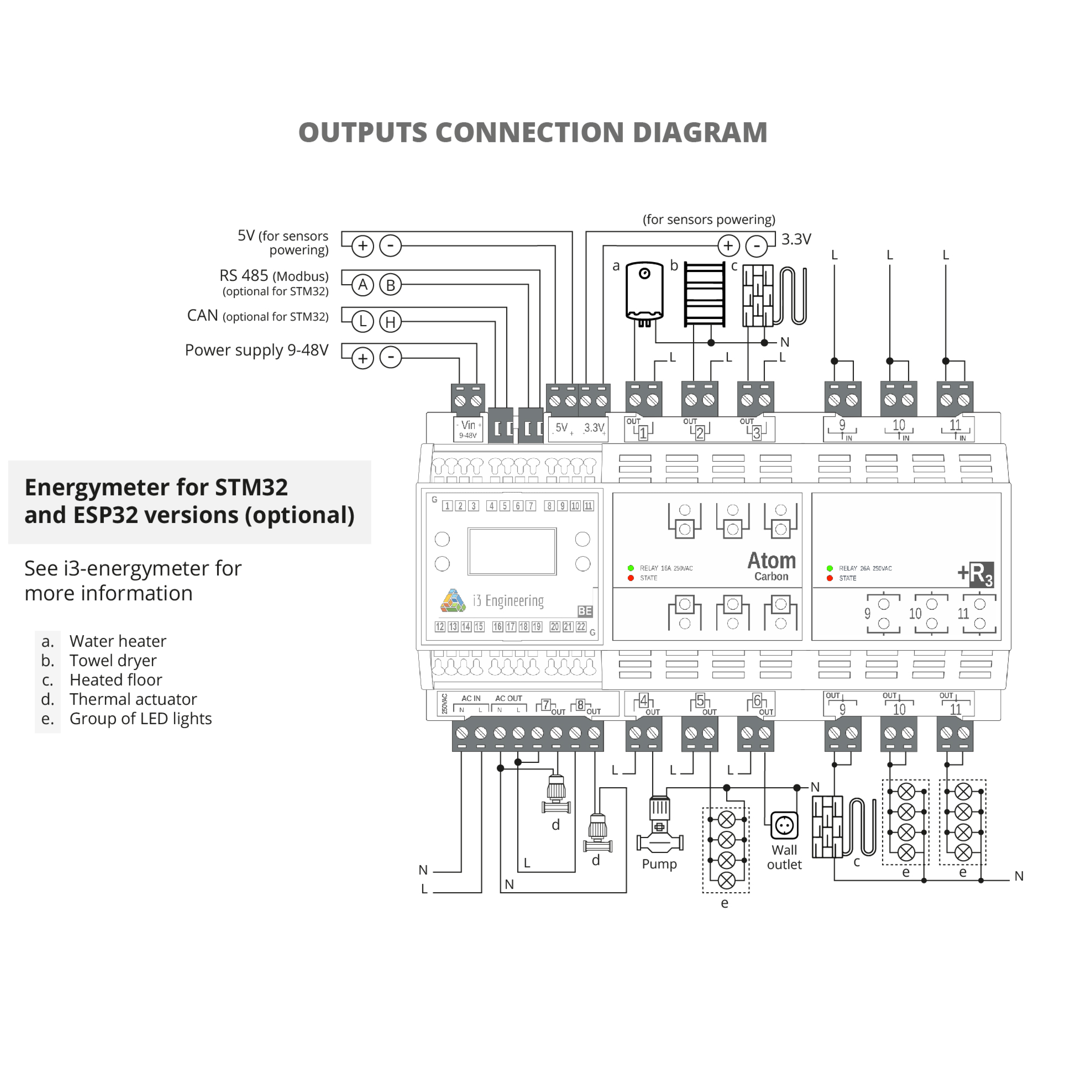

Outputs:

Ports 1-6
- Relay outputs NO contacts
6
- Active load
16А 250VAC
- Max inrush current
120 A

Ports 7-8
- Relay outputs NO contacts
2
- Active load
5А 250VAC
- Max inrush current
50A

Ports 9-11
- Relay outputs NO contacts
3
- Active load
26А 250VAC
- Max inrush current
50A

- Additional features
Built-in energy meter 10A/230V


Interfaces:
- Digital interfaces on MFP
1-Wire, USART, I2C on IN1-IN2, IN7-IN8 for ESP32; on IN1-IN12 for STM32
- Wireless interfaces
● WiFi 802.11 b/g/n 2,4 GHz
● Bluetooth v4.2 BLE
● LoRa (only STM32)

Power:
- Device supply voltage (with protection against reverse polarity of supply voltage)
DC 9 - 48V
- Output voltage ports
3.3V (200mА), 5V (200mА)
- Consumption (max)
15 W


Specification:
- Mounting type
DIN-rail (DIN43880, EN 60715)
- Width
9 units
- Dimensions(HxWxL)
59 х 88 х 158 mm
- Flammability
UL 94 - V-0
- Relative temperature
UL 746B - 95℃
