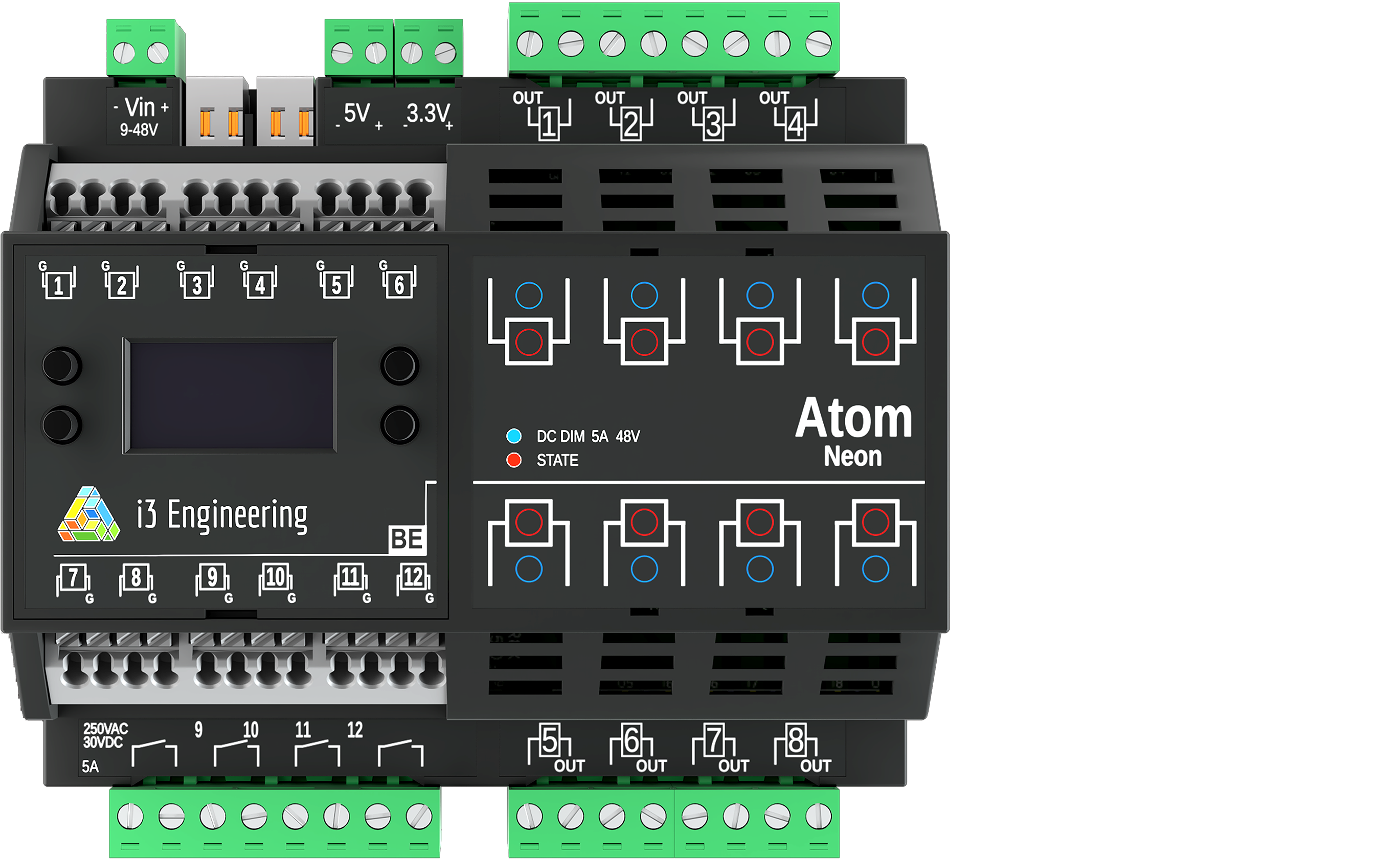

Atom Neon

Solution to control DC loads. Easily change the light level of LED lamps and strips. Also control the speed of fans and other DC motors.

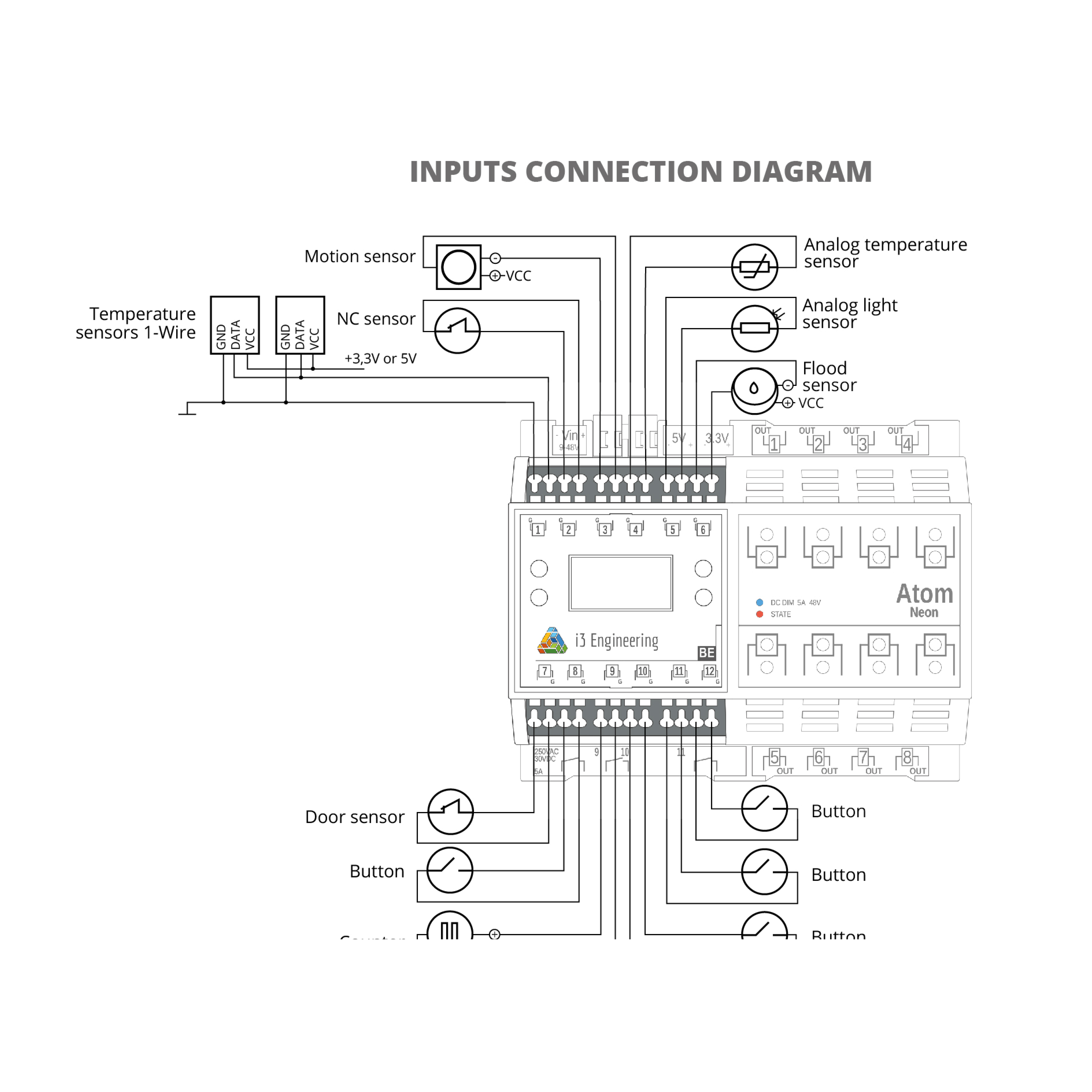

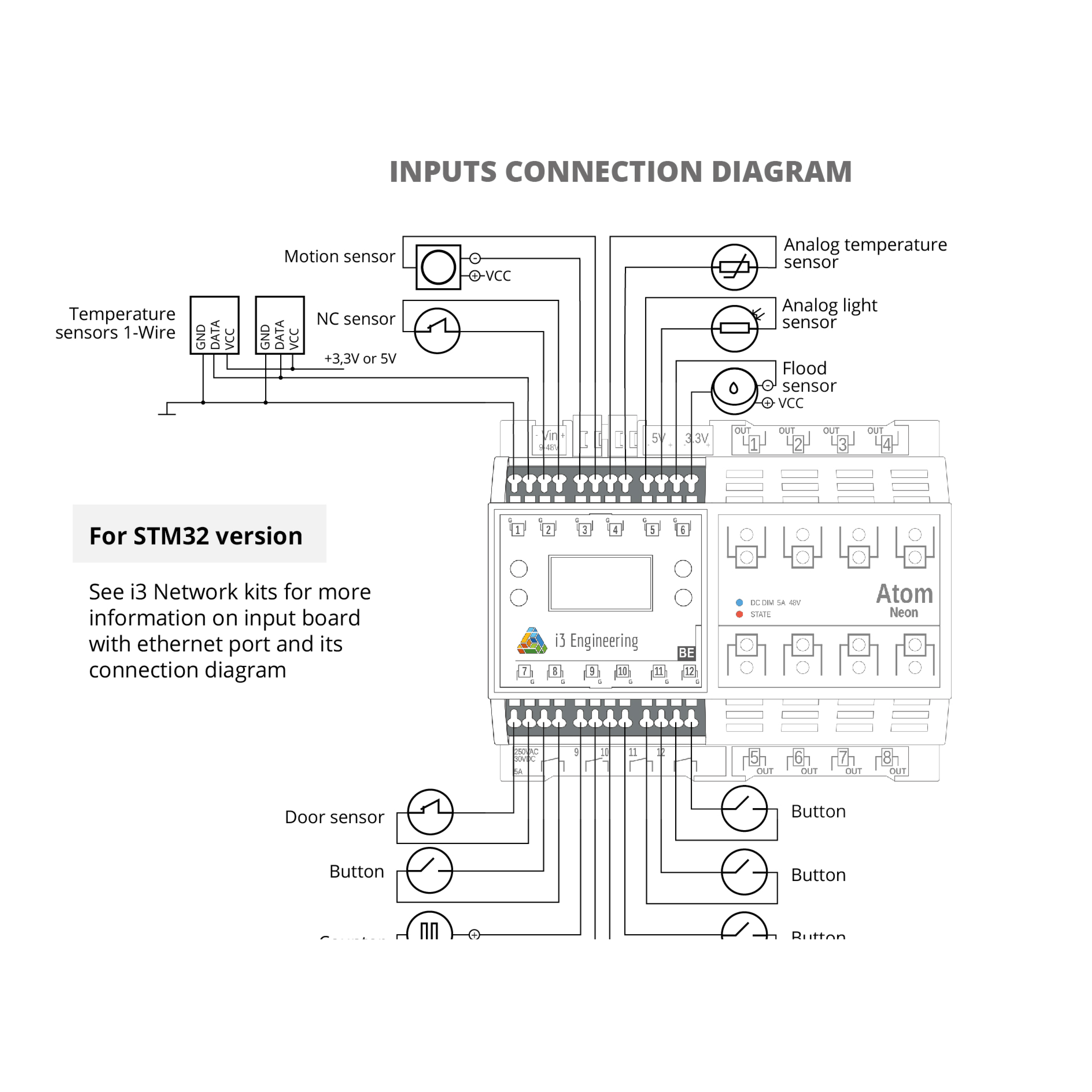

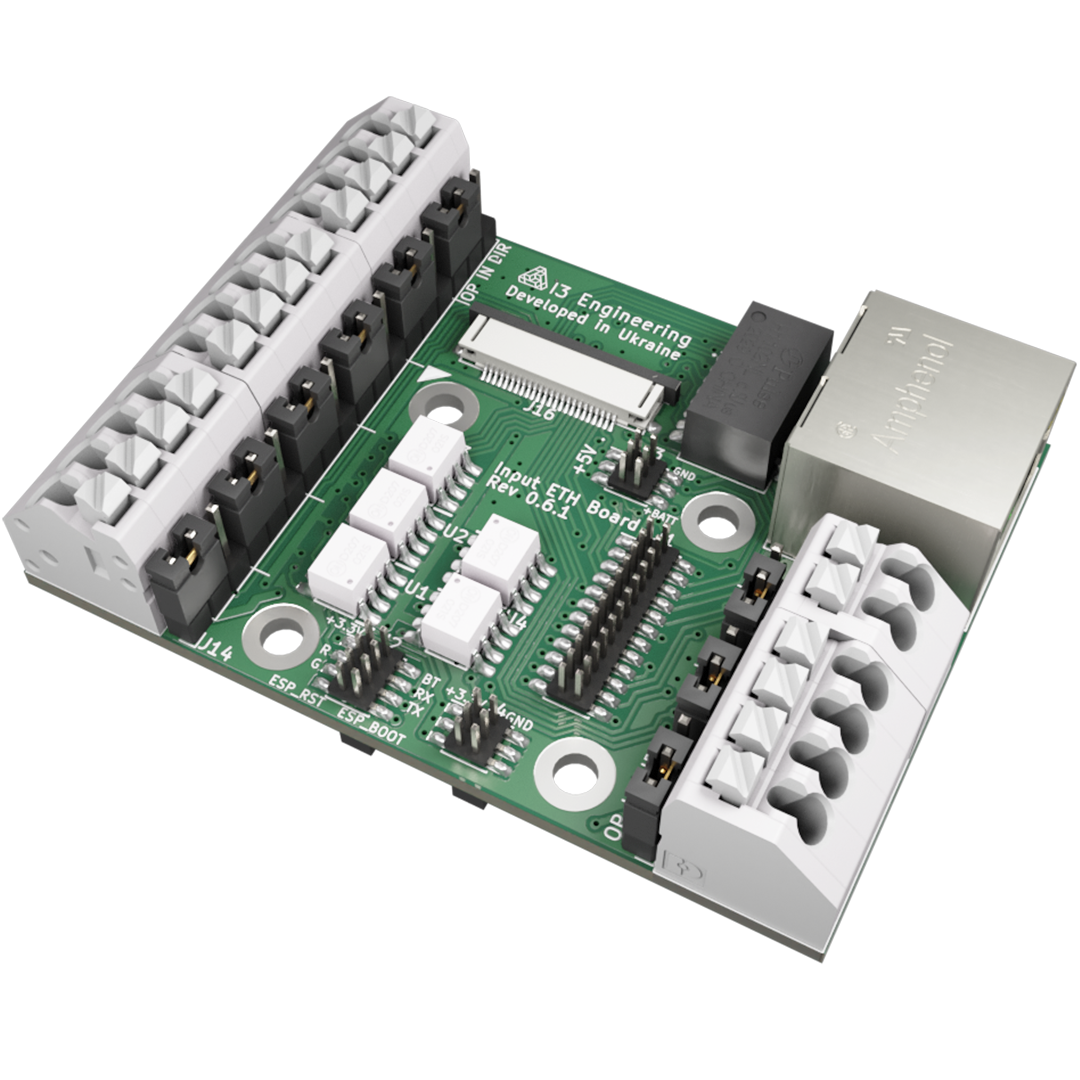

Multifunctional ports (MFP):
- MFP with digital input
12: IN1-IN12
- MFP with ADC
6: IN1-IN6 for ESP32; 10: IN3-IN12 for STM32
- MFP with digital interfaces
4: IN1-IN2, IN7-IN8 for ESP32; 12: IN1-IN12 for STM32
- MFP with digital outputs
8: IN1-IN2, IN7-IN12 for ESP32; 12: IN1-IN12 for STM32
- Voltage range for MFP in optocoupler mode
0 - 5 V
- Voltage range for MFP in direct mode
0 - 3,3 V
- ADC bit for MFP in analog mode
12 bit

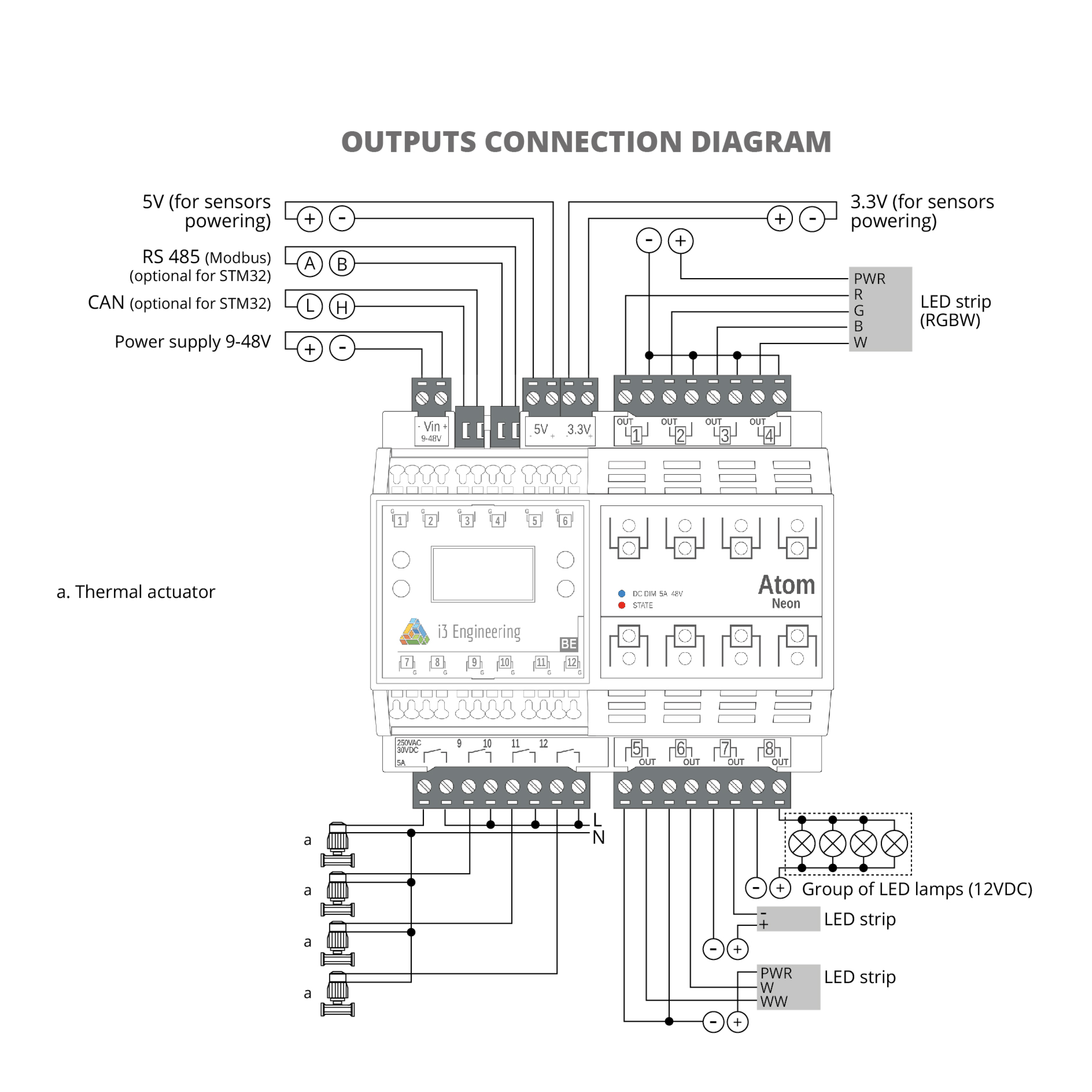

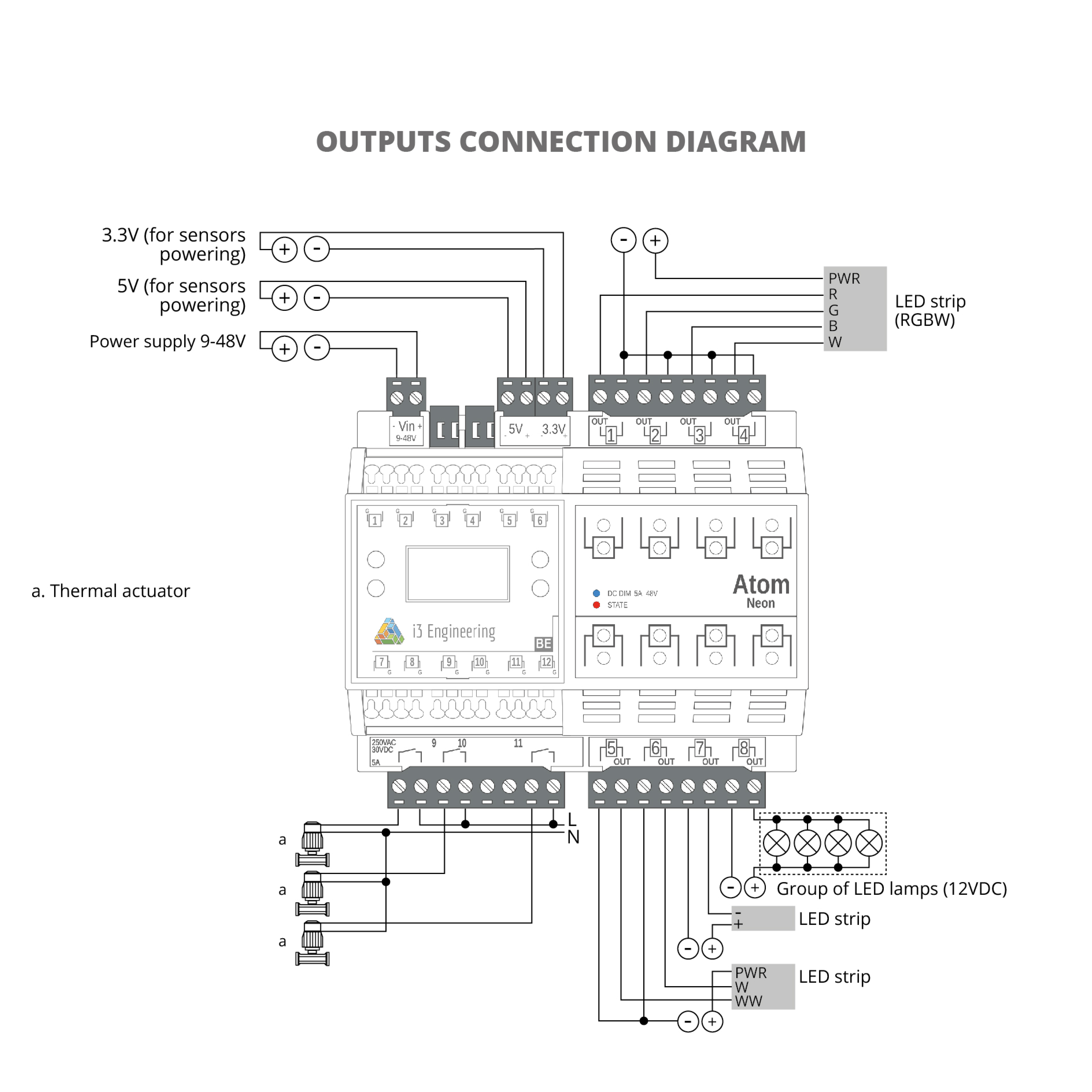

Outputs:
Ports 1-8

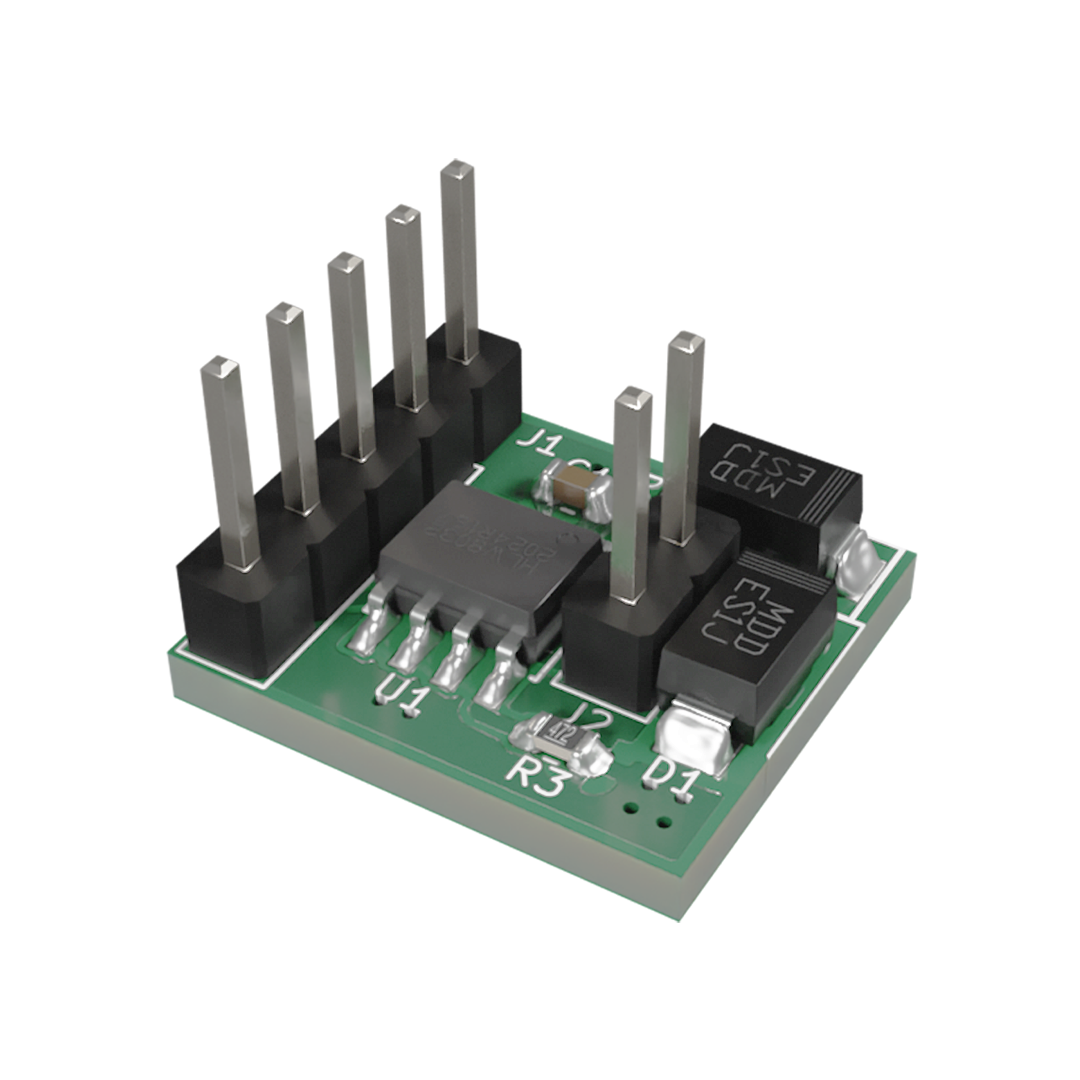

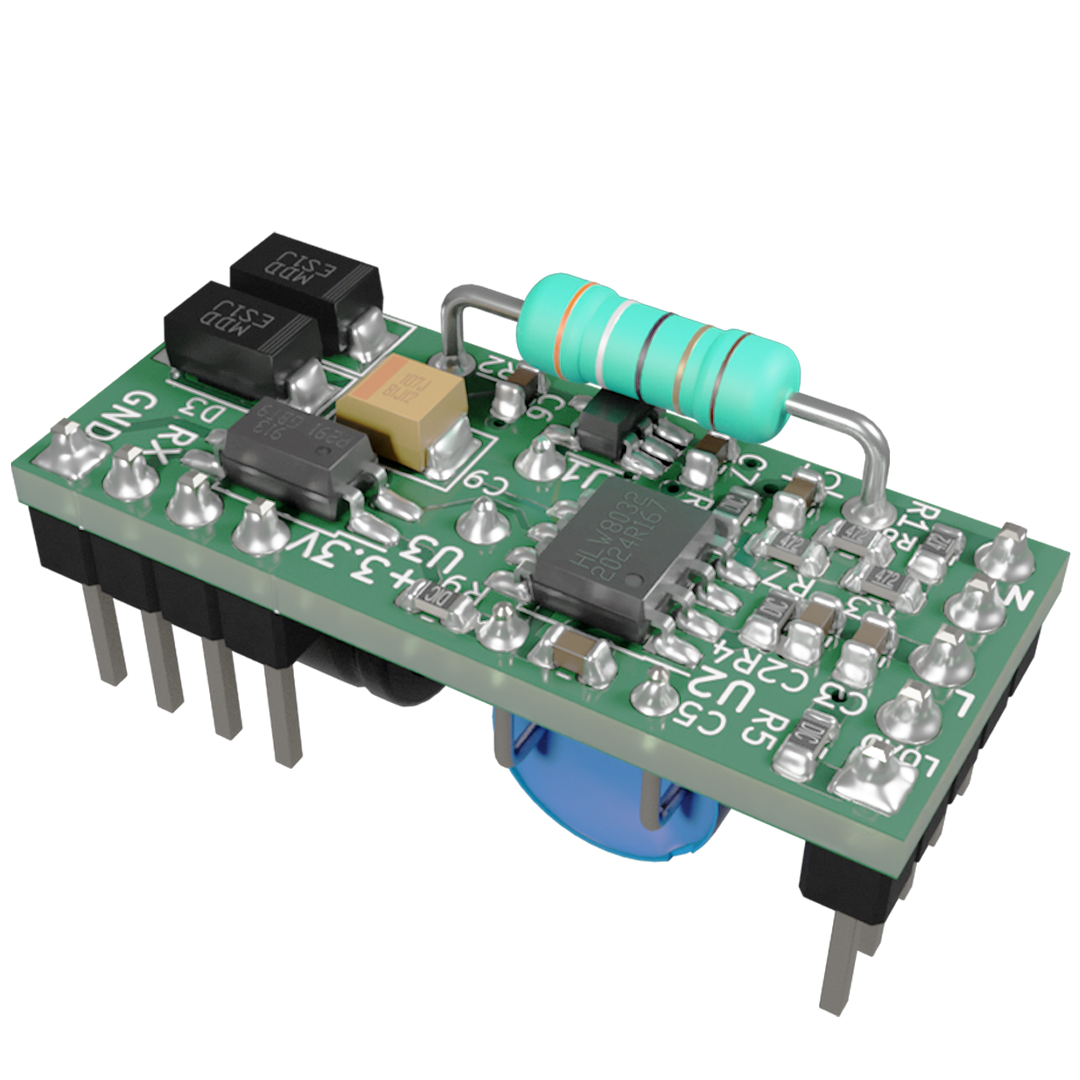

- DCD module outputs
8
- Active load
5А 48V DC
- Max inrush current
40 A
Ports 9-12
- Relay outputs NO contacts
4
- Active load
5А 250V AC
- Max inrush current
50 A

- Additional features
Current sensor for 1-12 ports


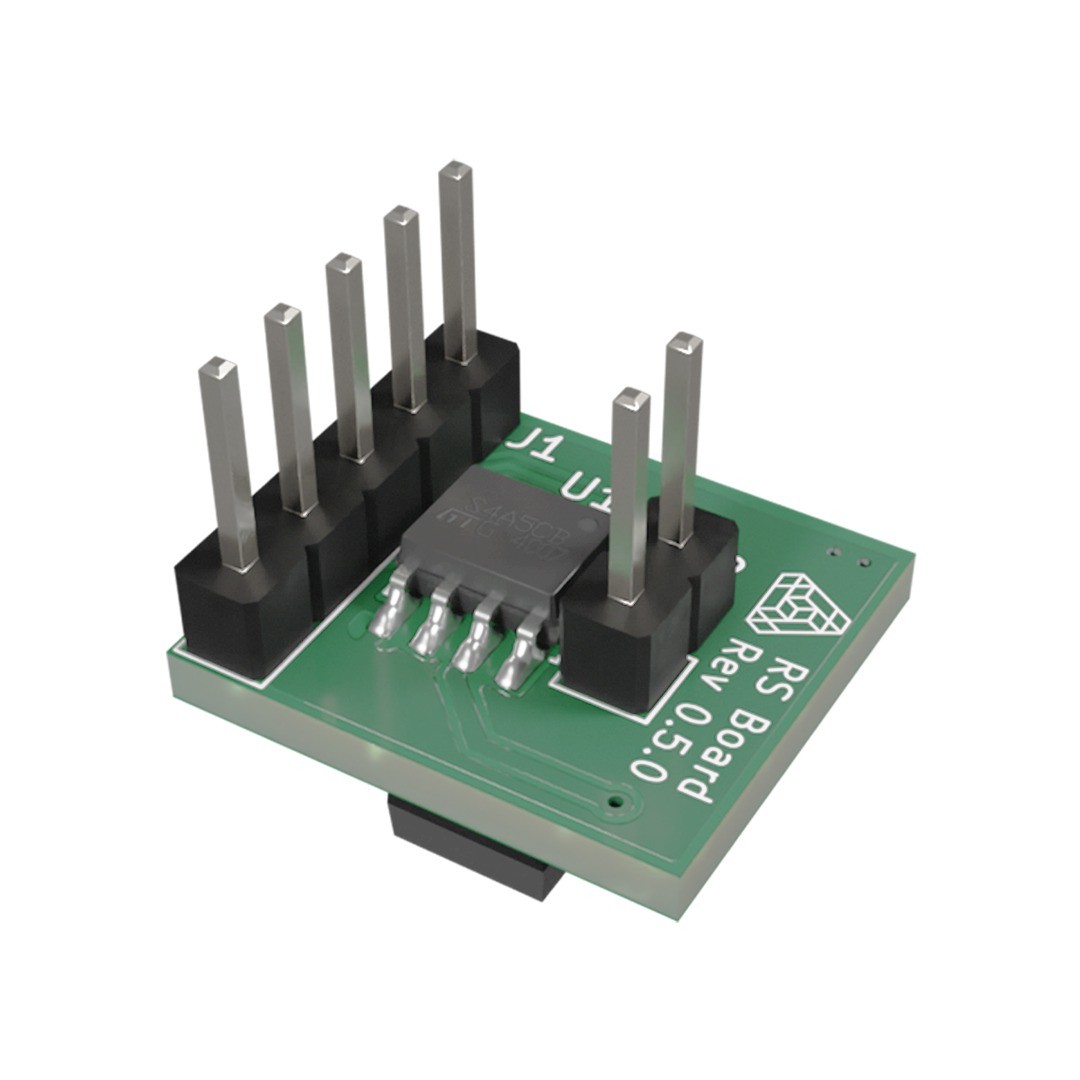

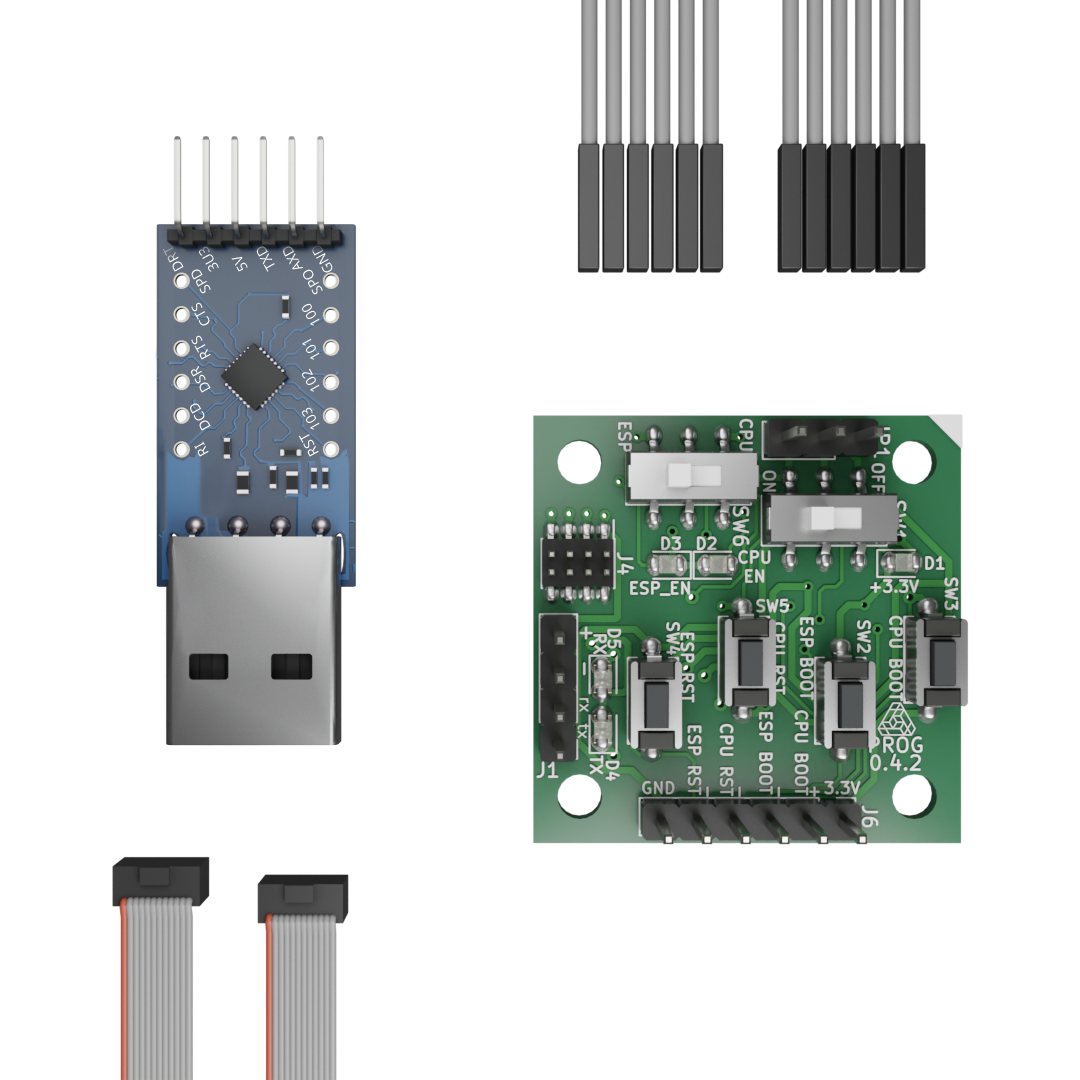

Interfaces:
- Digital interfaces on MFP
1-Wire, USART, I2C on IN1-IN2, IN7-IN8 for ESP32; on IN1-IN12 for STM32

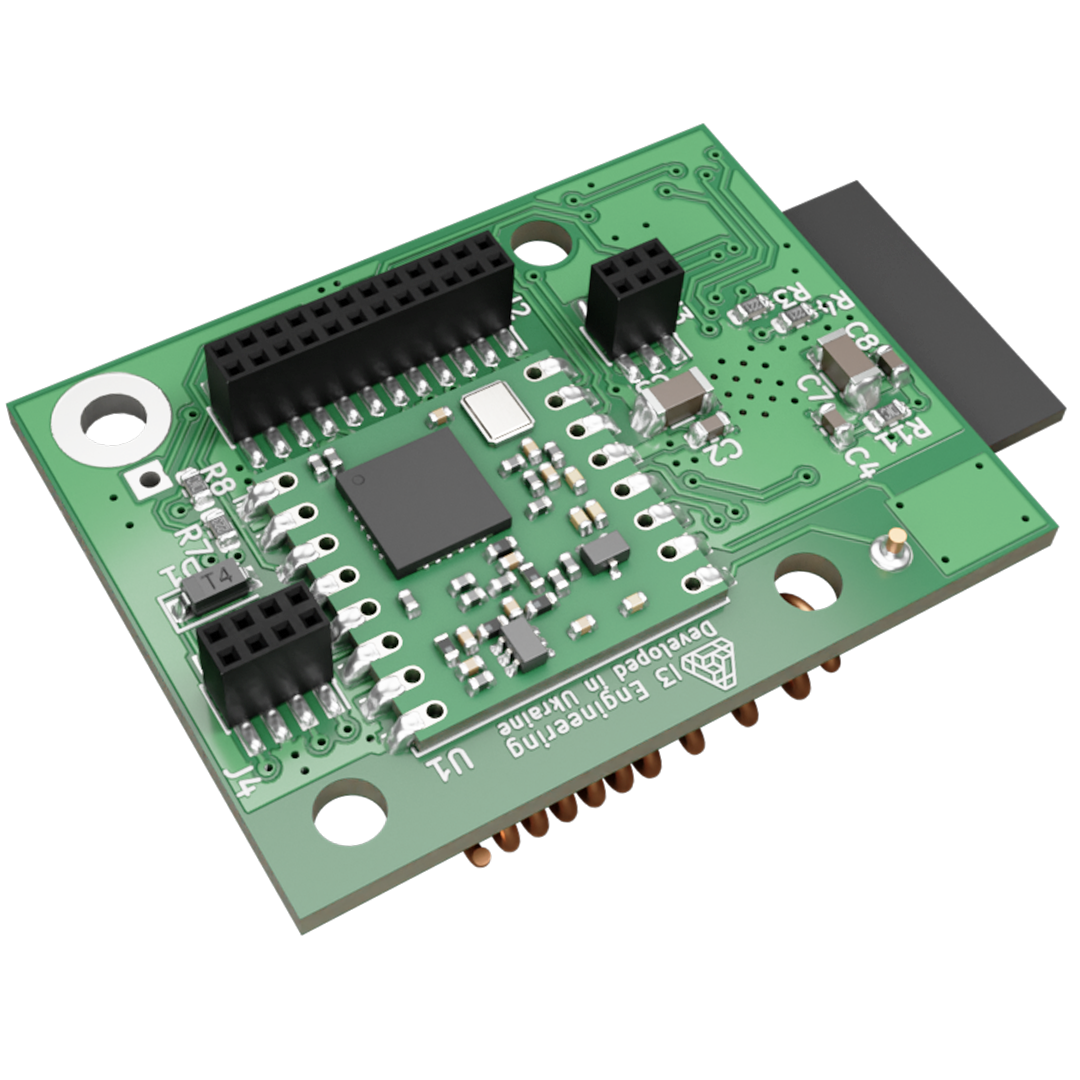

- Wireless interfaces

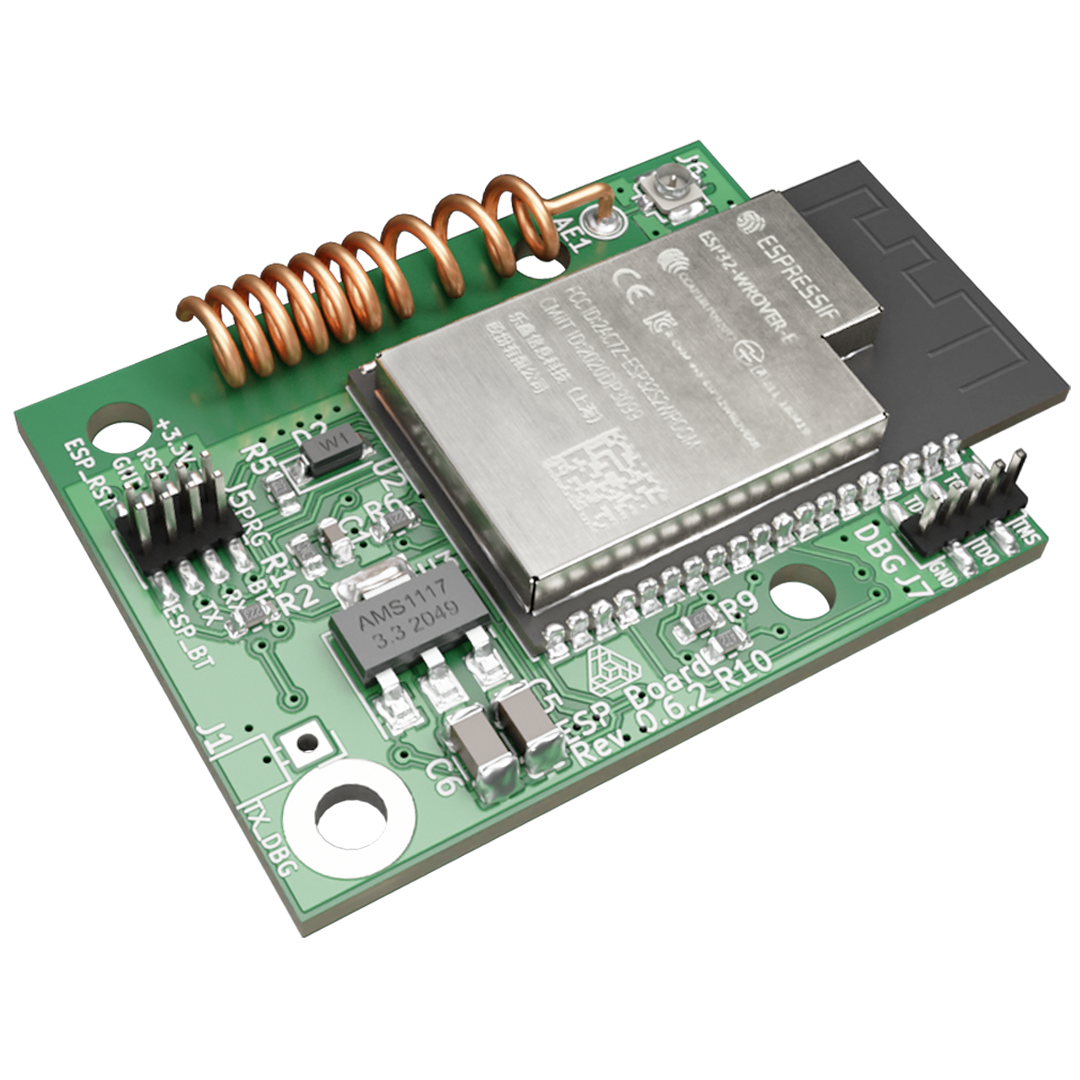

● WiFi 802.11 b/g/n 2,4 GHz
● Bluetooth v4.2 BLE
● LoRa (only STM32)


Power:
- Device supply voltage (with protection against reverse polarity of supply voltage)
DC 9 - 48V
- Output voltage to power the sensors
3.3V (200mА), 5V (200mА)
- Consumption (max)
15W


Specification:
- Mounting type
DIN rail (DIN43880, EN 60715)
- Width
6 units
- Dimensions (H x W x L)
59 х 88 х 105 mm
- Flammability
UL 94 - V-0
- Relative temperature index
UL 746B - 95℃
