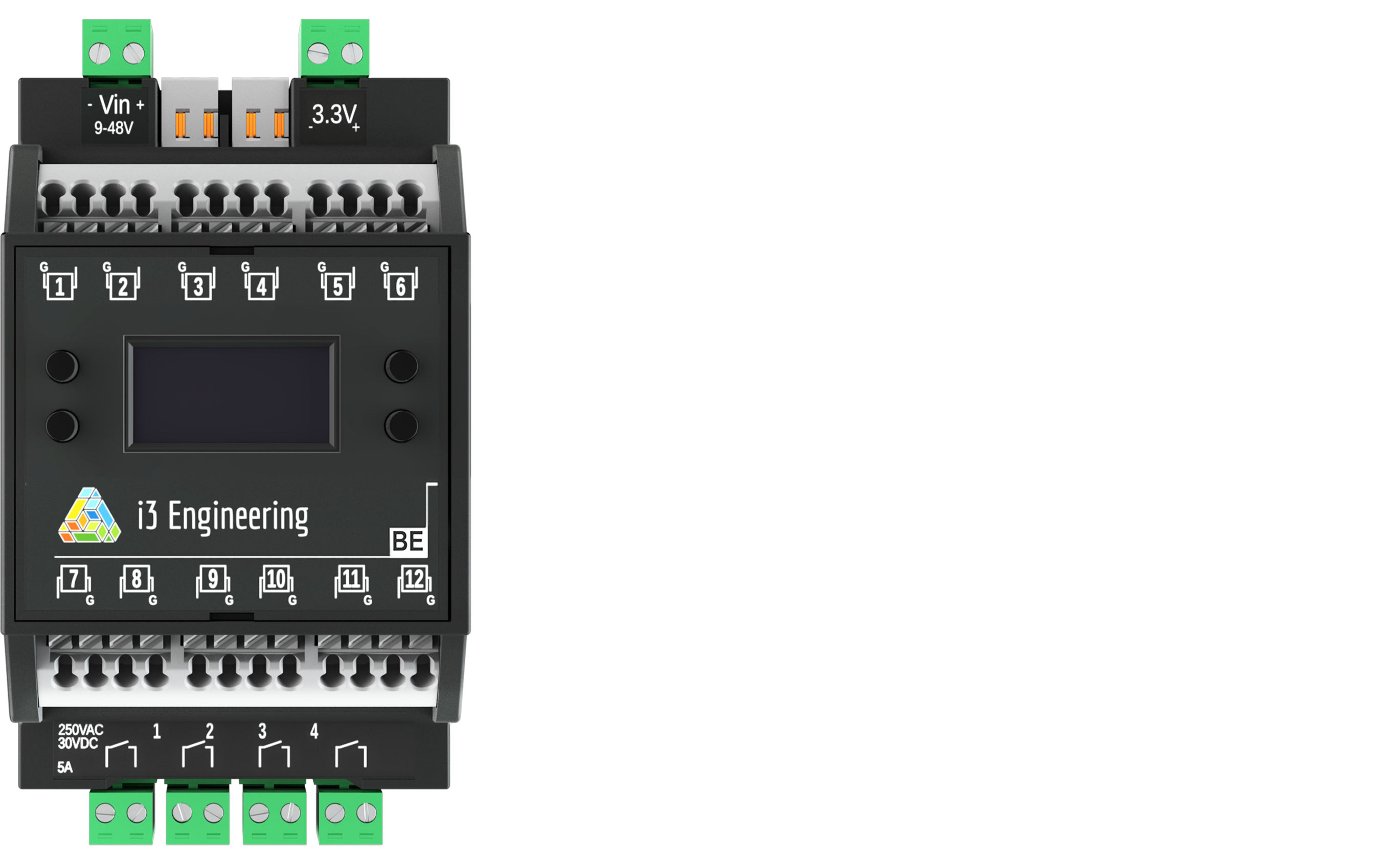

Atom Magnesium

Atom Magnesium

ESP32 Version
STM32 Version
ОписПодробиці та характеристикиПрикріплені файли
Compact controller for smaller projects automation. Great for managing low-power loads and contactors, both AC and DC.

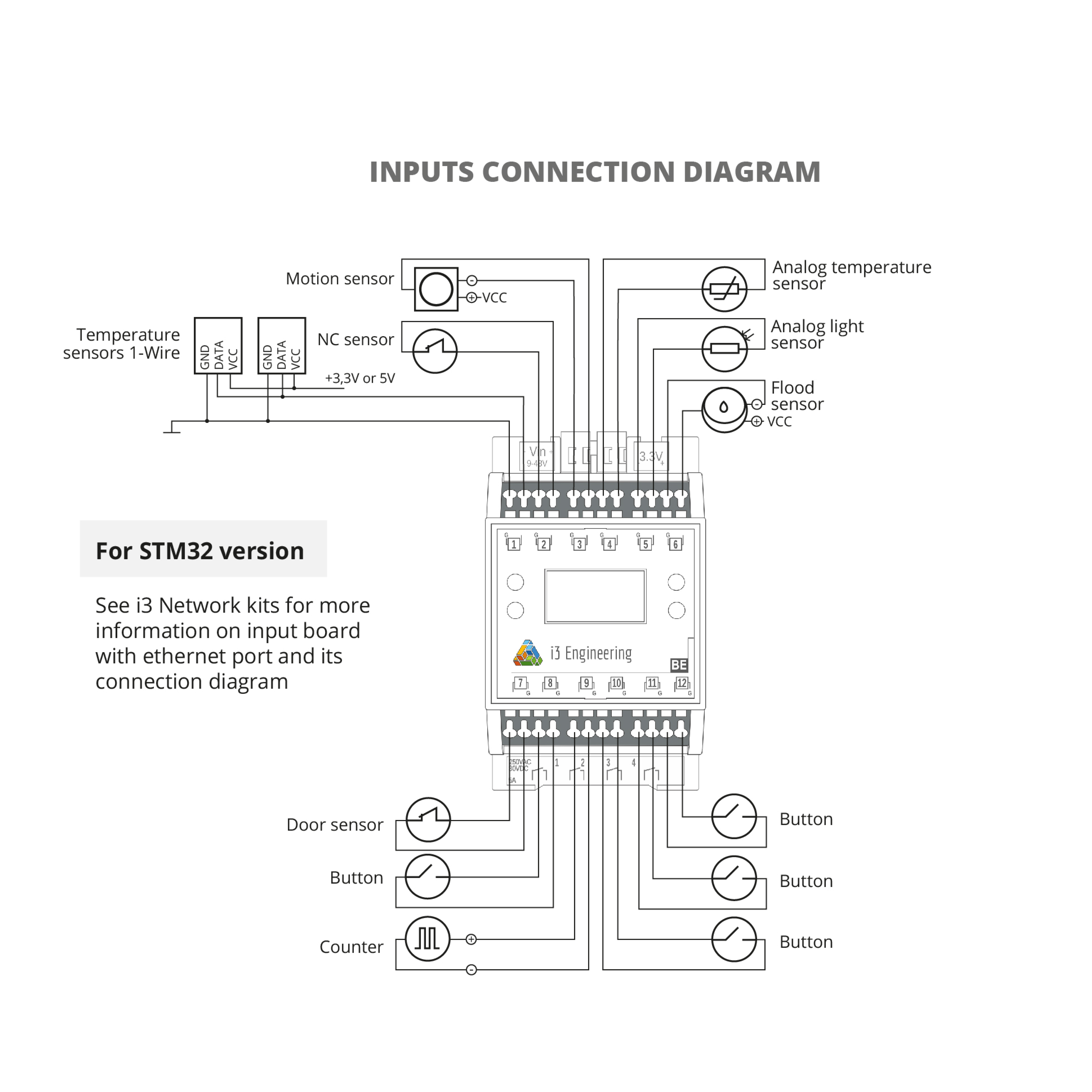

Multifunctional ports (MFP):
- MFP with digital inputs
12: IN1-IN12
- MFP with ADC
6: IN1-IN6 for ESP32; 10: IN3-IN12 for STM32
- MFP with digital interfaces
4: IN1-IN2, IN7-IN8 for ESP32; 12: IN1-IN12 for STM32
- MFP with digital outputs
8: IN1-IN2, IN7-IN12 for ESP32; 12: IN1-IN12 for STM32
- Voltage range in optocoupler mode
0 - 3,3 V
- Voltage range in direct mode
0 - 5 V
- ADC bit for MFP in analog mode
12 bit

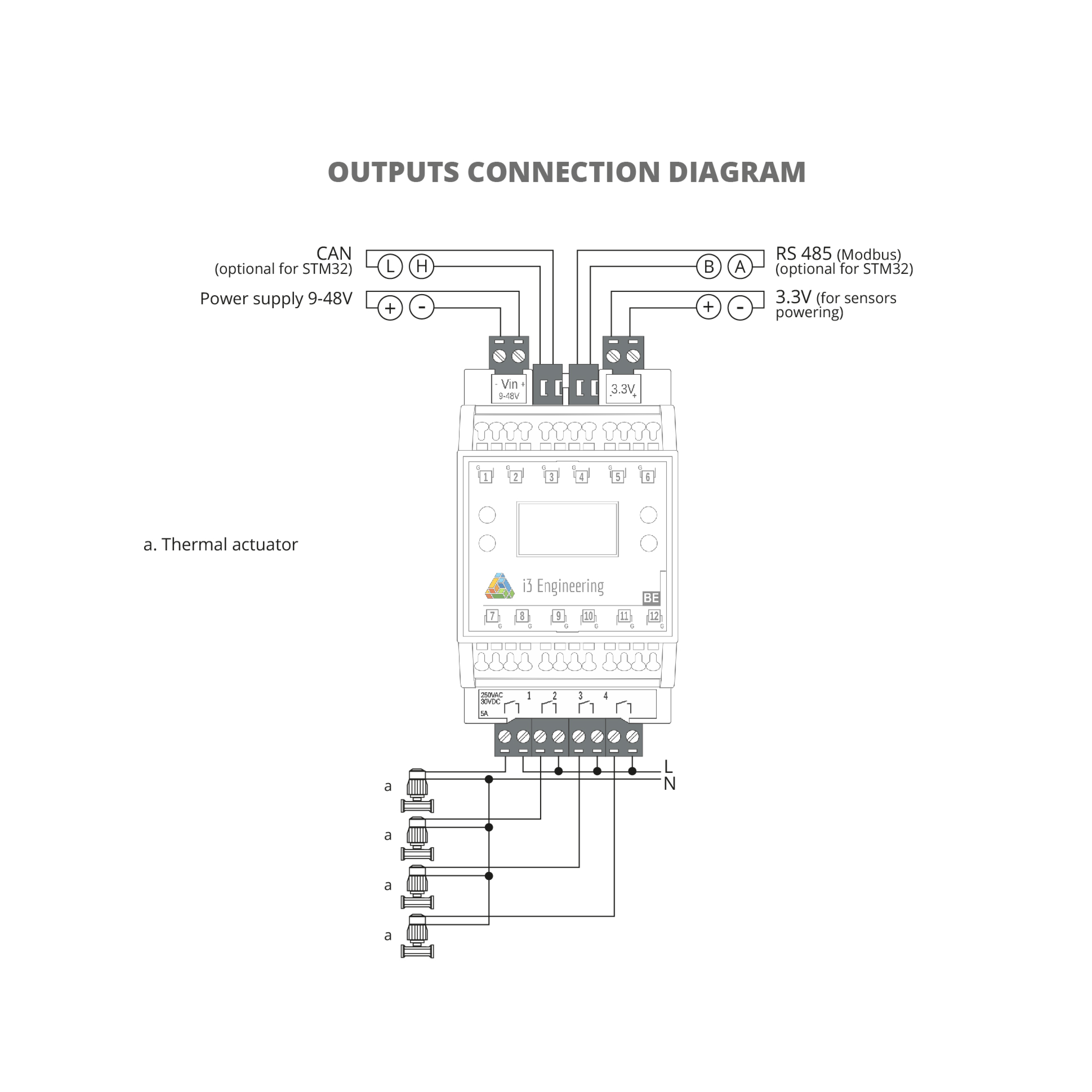

Outputs:

Ports 1-4
- Relay outputs NO contacts
4
- Active load
5А 250VAC
- Max inrush current
50 A


Interfaces:
- Digital interfaces on MFP
1-Wire, USART, I2C on IN1-IN2, IN7-IN8 for ESP32; on IN1-IN12 for STM32
- Wireless interfaces
● WiFi 802.11 b/g/n 2,4 GHz
● Bluetooth v4.2 BLE
● LoRa (only STM32)


Power:
- Device supply voltage (with protection against reverse polarity of supply voltage)
DC 9 - 48V
- Output voltage ports
3.3V (200mА), 5V (200mА)
- Consumption (max)
15 W


Specification:
- Mounting type
DIN-rail (DIN43880, EN 60715)
- Width
3 units
- Dimensions (HxWxL)
59 х 88 х 54 mm
- Flammability
UL 94 - V-0
- Relative temperature
UL 746B - 95℃
