Atom Hellium

Atom Hellium

ESP32 Version
STM32 Version
ОписПодробиці та характеристикиПрикріплені файли
Easily change the light level of LED lamps or control the speed of fans and other AC motors. Also suitable for controlling devices such as garage doors, electric locks, pumps, actuators and others

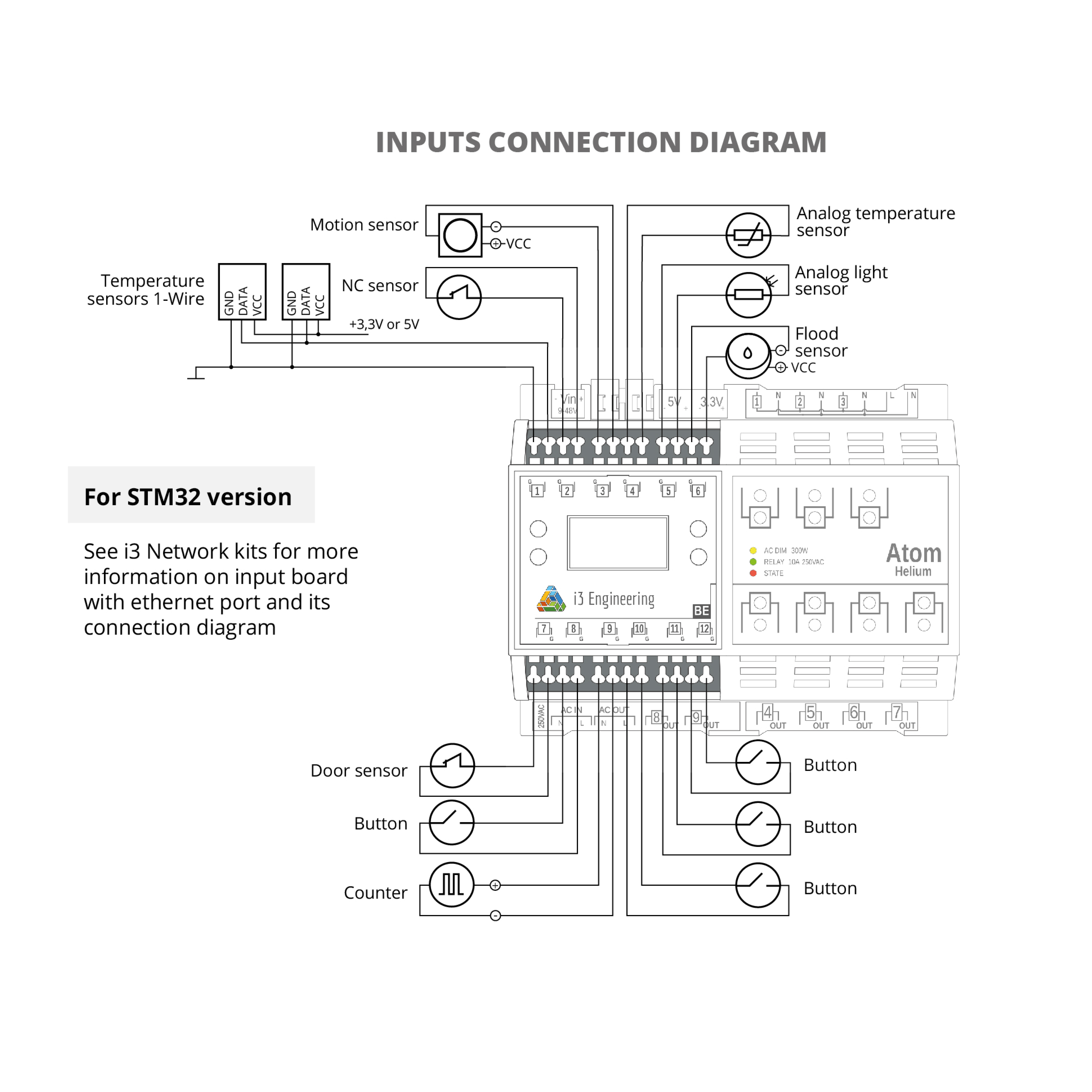

Multifunctional ports (MFP):
- MFP with ADC
IN1-IN6 for ESP32; IN3-IN12 for STM32
- MFP with digital interfaces
IN1-IN2, IN7-IN8 for ESP32; IN1-IN12 for STM32
- MFP with digital outputs
IN1-IN2, IN7-IN12 for ESP32; IN1-IN12 for STM32
- Voltage range for MFP in optocoupler mode
0 - 5 V
- Voltage range for MFP in direct mode
0 - 3,3 V
- ADC bit for MFP in analog mode
12 bit

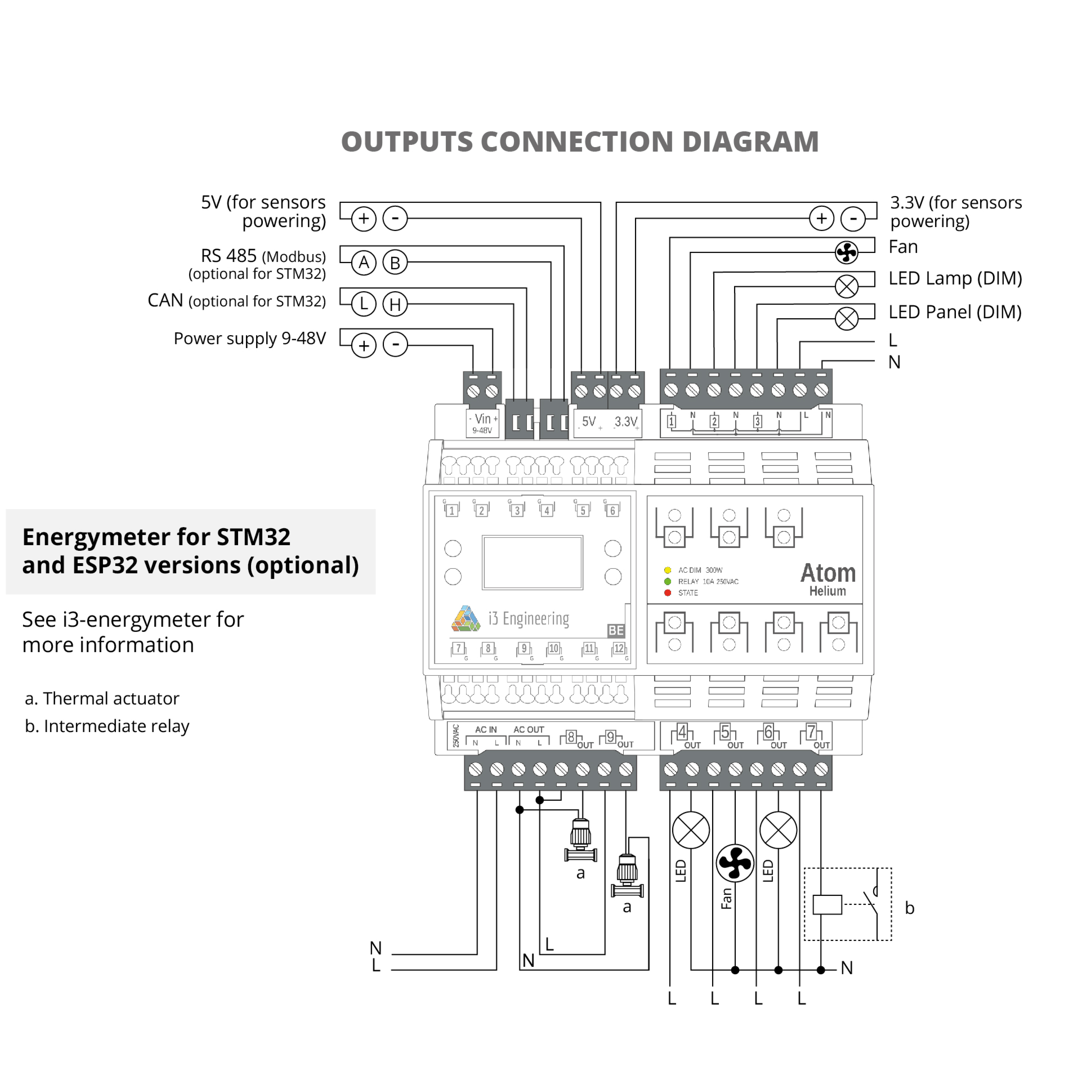

Ports 1-3
- ACD+ module outputs
- Active load
300W 250VAC
- Max inrush current

Ports 4-7
- Relay outputs NO contacts
- Active load
10А 250VAC
- Max inrush current
Ports 8-9
- Relay outputs NO contacts
- Active load
5А 250VAC
- Max inrush current

- Additional features
Built-in energy meter 10A / 230V, Current sensor for 1-7 ports

- Digital interfaces on MFP
1-Wire, USART, I2C on IN1-IN2, IN7-IN8 for ESP32; on IN1-IN12 for STM32
- Wireless interfaces
● WiFi 802.11 b/g/n 2,4 GHz
● Bluetooth v4.2 BLE
● LoRa (only STM32)

- Device supply voltage (with protection against reverse polarity of supply voltage)
DC 9 - 48V
- Output voltage to power the sensors
3.3V (200mА), 5V (200mА)
- Consumption (max)

- Mounting type
DIN rail (DIN43880, EN 60715)
- Width
6 units
- Dimensions (H x W x L)
59 х 88 х 105 mm
- Flammability
UL 94 - V-0
- Relative temperature index
UL 746B - 95℃
