Atom Argon

ESP32 Version
STM32 Version
0,00EUR249,00EUR
DescriptionDetails & specsAttachments
Best for controlling low-loads without high inrush currents and intermediate contactors

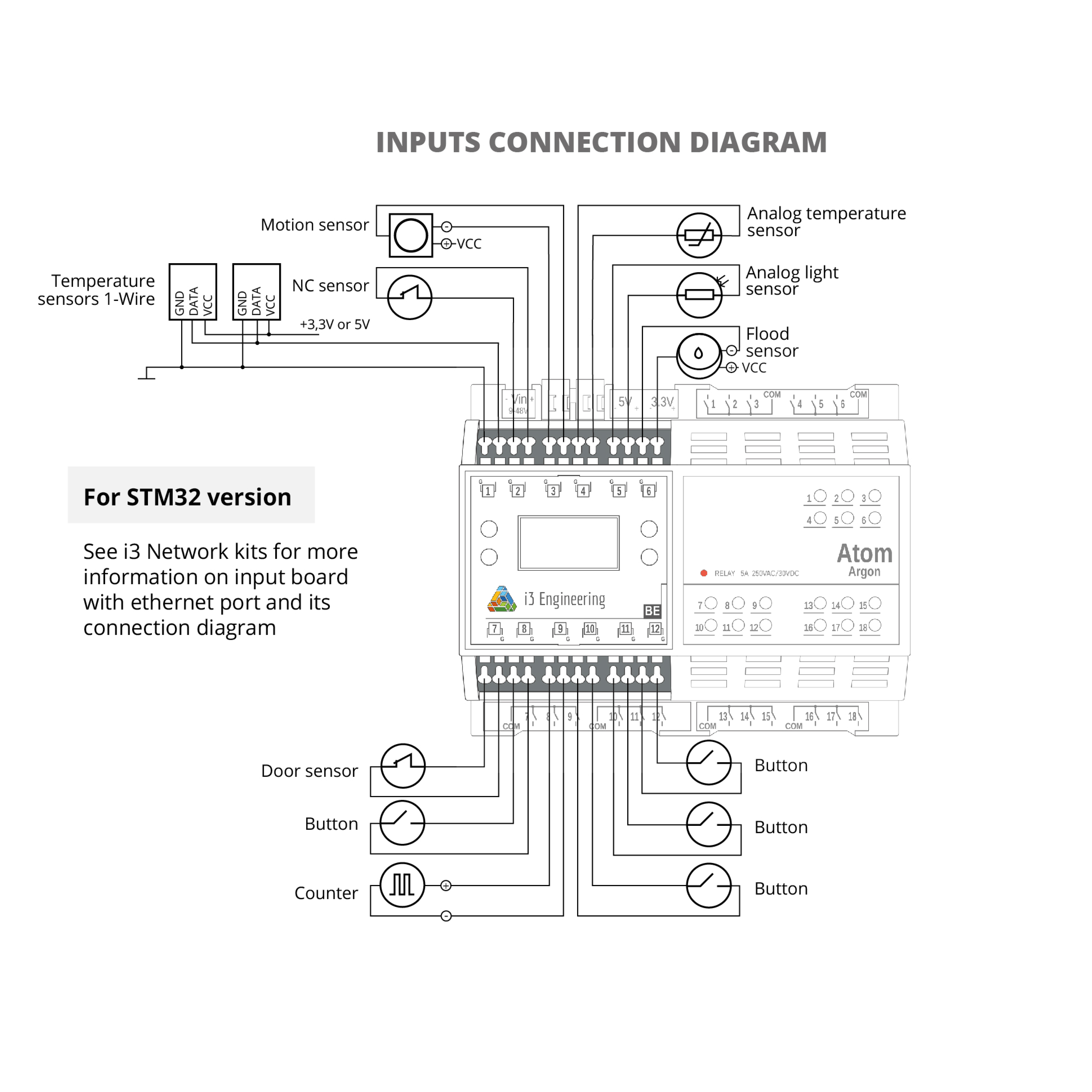

Multifunctional ports (MFP):
- MFP with digital input
12: IN1-IN12
- MFP with ADC
6: IN1-IN6 for ESP32; 10: IN3-IN12 for STM32
- MFP with digital interfaces
4: IN1-IN2, IN7-IN8 for ESP32; 12: IN1-IN12 for STM32
- MFP with digital outputs
8: IN1-IN2, IN7-IN12 for ESP32; 12: IN1-IN12 for STM32
- Voltage range for MFP in optocoupler mode
0 - 5 V
- Voltage range for MFP in direct mode
0 - 3,3 V
- ADC bit for MFP in analog mode
12 bit

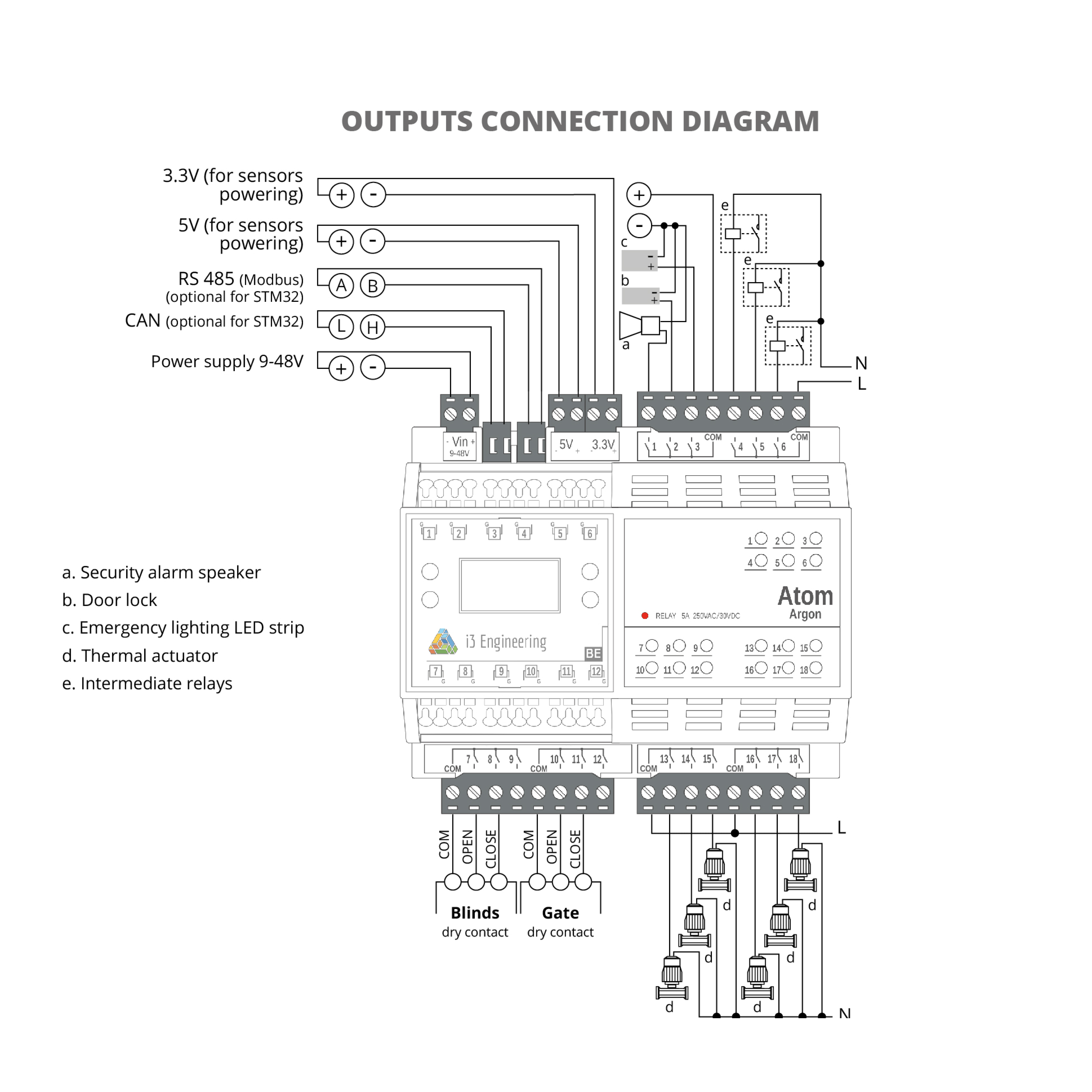

Outputs:
Ports 1-18
- Relay outputs NO contacts
18
- Active load
5А 250VAC
- Max inrush current for 1-18 ports
50A
Interfaces:
- Digital interfaces on MFP
1-Wire, USART, I2C on IN1-IN2, IN7-IN8 for ESP32; on IN1-IN12 for STM32
- Wireless interfaces
● WiFi 802.11 b/g/n 2,4 GHz
● Bluetooth v4.2 BLE
● LoRa (only STM32)


Power:
- Device supply voltage (with protection against reverse polarity of supply voltage)
DC 9 - 48V
- Output voltage to power the sensors
3.3V (200mА), 5V (200mА)
- Consumption (max)
15W


Specification:
- Mounting type
DIN rail (DIN43880, EN 60715)
- Width
6 units
- Dimensions (H x W x L)
59 х 88 х 105 mm
- Flammability
UL 94 - V-0
- Relative temperature index
UL 746B - 95℃
